HONDA 420 4X4 QUAD ATV RENTALS

WHITECOURT ALL TERRAIN COMMERCIAL RENTALS

Whitecourt All Terrain Quad, ATV Rentals.

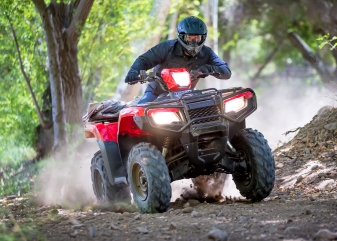

Honda is the industry leader of utility quads designed for working use in the field. The Honda 420 is our choice for dependable, maneuverable, reliable Quad ATV Rentals. Utilizing a lightweight compact design these ATV’s provide easy, trouble-free travel in overgrown and tough access locations. They have electric start and fuel injection to ensure easy starting in all weather conditions, with back up pull starts to guarantee you can always get back to the truck.

Every Whitecourt All Terrain ATV Rental machine is equipped with a winch to ensure a safe method to aid in traversing rough terrain.

ENGINE

Engine Type420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke86.5mm x 71.5mm
InductionKeihin® 34mm throttle-body fuel-injection system
StarterElectric with optional auxiliary recoil
Compression Ratio9.9:1

DRIVE TRAIN

ClutchAutomatic
TransmissionFive-speed with Reverse
DrivelineDirect rear driveshaft

CHASSIS / SUSPENSION / BRAKES

Front SuspensionIndependent double-wishbone; 6.69 inches travel
Rear SuspensionSwingarm with single shock; 6.69 inches travel
Front Brake190mm Dual hydraulic disc
Rear Brake160mm Sealed mechanical drum
Front Tire24 x 8-12
Rear Tire24 x 10-11

DIMENSIONS

Length82.8 inches
Width47.4 inches
Height46.2 inches
Wheelbase49.9 inches
Seat Height33.7 inches
Ground Clearance7.2 inches
Curb Weight573 pounds (includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity3.9 gallons, including 1.3-gallon reserve
Turning Radius9.2 feet

OTHER

Model IdTRX420TM1
EmissionsMeets current California Air Resources Board (CARB) and EPA off-road emissions standards
Available ColorsRed, Olive
NoteNo operator under age 16. Honda recommends that all ATV riders take a training course and read their owners manual thoroughly.
